vink Deep Dive: One State Machine for Heartbeats and Uptime Checks

Monitoring a production estate needs two kinds of signal. Services are probed from the outside: does the API answer, does the certificate still have a month to run. Scheduled work cannot be probed that way. A backup, an ETL job or a certificate renewal is only visible when it reports in, so the monitor has to notice when a report fails to arrive.

The market ships these as separate products. Heartbeat receivers in the style of Healthchecks sit on one side, probers in the style of Uptime Kuma on the other, each with its own users, alert routing and status pages. The self-hosted ones are mostly single-user, and the hosted ones cannot see inside a closed network.

vink is our answer. It is one Go binary with embedded SQLite, in which push heartbeats and pull checks feed one state machine, one incident list, one set of alert routes and one set of status pages. It is multi-tenant from the first migration and built to install air-gapped.

This article is the technical account. The user-facing story is on Jaro’s personal site, and vink’s sibling, the tmux agent sidebar flok, has a deep dive of its own.

Design principles

#

vink is built from a design document that fixes four principles before any code:

1. Tenancy is structural. Every row carries its project or org, every query takes a scope, and tooling rejects a query that forgets it.
2. One state machine. A ping, a local check result and an agent’s result are the same Observation type.

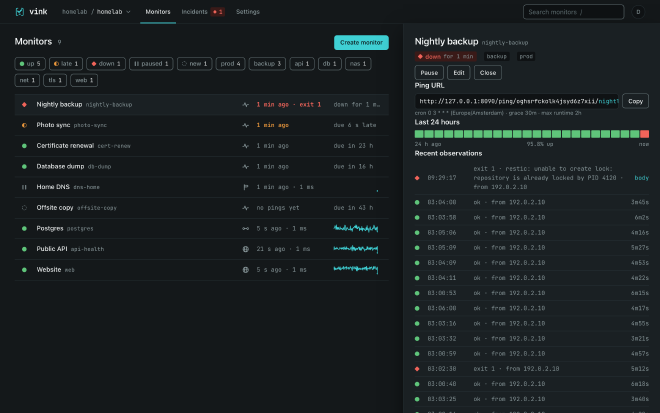

3. Simple surface, flexible core. The UI has one list and one drawer per entity. Anything it cannot express is reachable through the API and a declarative YAML file.
4. Boring, static, offline. One process, one file on disk, no runtime dependencies, and no outbound connection unless configured.

vink at a glance

#

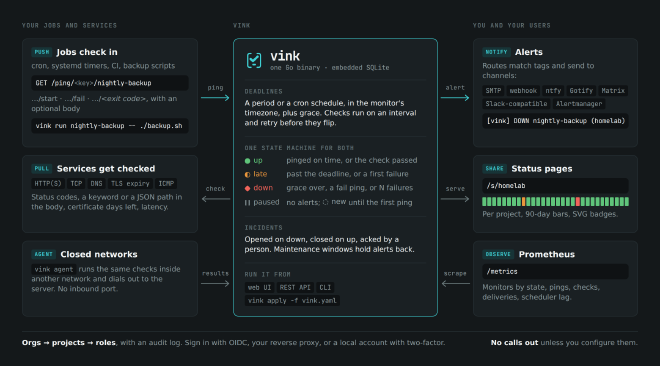

Architecture

#

One process holds four transports, a service layer, an engine and a store. The transports never touch the database: a handler parses the request, calls one service method and renders the result.

• The CLI is a client of the REST API. It shares nothing with the server beyond the domain types and the apply schema. Its pings go through the same zero-dependency Go module that programs use.
• The service layer owns authorization and transactions. Auth middleware sets a scope once, with the org, project, user and role, it travels in the context, and every service method and query takes it.
• The engine is three loops and a bus, and like the transports it works through the service layer. After every commit that touches a monitor, the service publishes MonitorChanged, and the scheduler and checker pool treat it as “something changed, look again”. Publishing never blocks: a subscriber that falls behind loses events and a counter records how many. That is safe because each loop also re-reads its due list at least every 30 seconds.

Storage

#

SQLite comes through modernc.org/sqlite, a pure-Go translation of SQLite, so the binary stays static and cross-compiles without a C toolchain. The database is opened twice:

Both run in WAL mode with synchronous=NORMAL, busy_timeout=5000 and foreign keys on. IDs are ULIDs and timestamps are Unix milliseconds in UTC. Scope ids are copied onto the hot tables (monitors, observations, events), so no scope check needs a join.

Migrations are dbmate-format SQL files, embedded and applied at start by vink’s own small runner, because dbmate’s SQLite driver needs cgo. vink migrate dump writes db/schema.sql, which is sqlc’s input, so the generated Go query code always matches the schema the migrations produce. Backups use VACUUM INTO, which writes a compact, consistent copy while the server keeps running.

The ping path

#

A ping is the hottest path in the system and the least authenticated one: the ping key in the URL is an address, not a secret. The ingress is its own handler group, with no session, no CSRF token and no HTML anywhere on the path, and it checks the cheap things first.

Everything a ping changes happens in that one transaction: the observation and its body, the monitor’s new state and next deadline, the event row for a flip, the incident it opens or closes, and the outbox rows for the alerts it causes. A crash leaves all of it or none of it. The design target for a ping without a body is a p99 under 5 ms on SQLite.

A few details make the ingress pleasant to integrate with:

• Signals live in the path. /start, /fail, /log and /<exit code> sit next to the plain ping, and ?rid= pairs a start with its finish so overlapping runs get the right durations.
• Bodies are evidence. By default up to 64 kB of a ping’s body is stored with the observation. A streamed body that runs over is cut and flagged, and a Ping-Body-Limit header tells clients the limit to cut to.
• Monitors can create themselves. ?create=1 makes an unknown slug into a heartbeat, with its schedule, grace and tags taken from the query. Settings that do not make a valid monitor get a 400 with one line per problem, and only after the key has checked out.
• One handler, two listeners. Pings can also be served on a second plain-HTTP listener, so jobs can bypass a slow proxy, and both listeners share one set of rate limits.

A key leaked in a crontab can be rotated from the project’s keys tab. The old key keeps working for 24 hours, so jobs can be updated without missed pings.

One state machine

#

The state machine is a pure function:

func Apply(m *domain.Monitor, obs *domain.Observation, now time.Time, loc *time.Location) (Decision, error)

It returns a Decision with the new state, the reason, the streak counters, the next deadline, and sometimes a synthetic observation for the caller to store. It never touches the database, so every transition is a table test. A scheduler tick is the same call with no observation. Pull checks go through its sibling, ApplyCheck.

Every flip writes an event. Entering down opens an incident, and leaving it closes the incident. Any state can be paused, and a resumed monitor starts again as new, with its deadline counted from the moment of resuming.

Heartbeats: deadlines

#

A heartbeat’s deadline comes from its schedule, computed in the monitor’s own timezone:

The tolerance, 30 seconds by default, exists so that a job which fires at its deadline and pings a second later does not flap to late and back on every run. Beyond deadlines, the heartbeat rules are:

• Run timeouts. A start without a finish within max_runtime produces a synthetic fail observation with the reason run_timeout. The caller stores it like any other.
• Thresholds. failure_threshold is 1 by default and can be raised so a job may fail once quietly. recovery_threshold can ask for several good runs before an incident closes.
• Daylight saving. Cron occurrences are computed in the monitor’s location. A wall-clock time that does not exist on a spring-forward night is skipped, and one that occurs twice on a fall-back night fires once. The test table covers Amsterdam, New York and Lord Howe Island, whose clocks move by half an hour.

Pull checks: confirmation before alarm

#

A TLS check inside its warn_days returns a passing result flagged Warn, which keeps the monitor late without counting as a failure. Inside crit_days it fails. The checker interface is deliberately small, and adding a kind is one file plus a registry line:

type Checker interface {
	Kind() domain.Kind
	Check(ctx context.Context, spec *domain.PullSpec, env Env) Result
}

Two overrides: maintenance and missing agents

#

• Maintenance windows are one-off or weekly, with a timezone, and match monitors by tag. Inside a window a monitor still records everything, but a flip that would reach down stops at late and no deliveries are enqueued. A heartbeat held this way is looked at again when the window ends.
• A monitor whose agent goes quiet turns late with the reason agent offline. It never counts as a failure, so a monitor never goes down for lack of an agent.

A scheduler that sleeps

#

A heartbeat costs nothing while it waits. Every decision recomputes the monitor’s next_due_at in the same transaction, and that column is indexed. The scheduler reads the earliest value and sleeps until then, at most 30 seconds or until a bus event. It then ticks every due monitor in batches of 100 and goes back to sleep.

When a pass runs more than five seconds late it logs a warning, and the lag is exported as vink_scheduler_lag_seconds. /readyz fails when the scheduler has not ticked for 30 seconds, so a supervisor can restart a wedged process.

Pull checks use the same sleep-until-due loop on a pool of 32 workers by default. A per-monitor mutex keeps attempts from overlapping, also when someone presses check now during an attempt. A monitor whose run errored is left alone for 30 seconds.

Alerts through an outbox

#

A flip that should alert writes rows to an outbox table, deliveries, in the same transaction as the flip. Nothing is sent inside the transaction, and nothing is lost when the process dies right after the commit: the dispatcher picks the rows up when it starts again.

The ordering rule is a single query, and it shows the annotation convention the tenancy tooling relies on, which comes up again below:

-- name: CountEarlierPendingDeliveries :one
-- tenancy: root (dispatcher keeps per-monitor order)
SELECT COUNT(*) FROM deliveries
WHERE monitor_id = ? AND channel_id = ? AND delivered_at IS NULL AND failed_at IS NULL AND created_at < ?;

What the outbox delivers is designed to need no follow-up:

• Alerts say why. A down caused by a ping carries that ping’s ?msg=, or else the tail of its body (the last 20 lines, at most 2,000 bytes), and its exit code, in every channel.
• Routing follows tags. A route sends down, up and optionally late for monitors that carry all of its tags. Org-level routes fire beside each project’s own routes.
• Repeats and acknowledgement. A route can repeat its alert while the incident stays unacknowledged. Every alert carries an acknowledgement link that is HMAC-signed with the instance key, works for seven days and needs no sign-in.
• The channel set is small and open. The built-in kinds are SMTP, ntfy, Gotify, Matrix, Slack-compatible webhooks and Alertmanager. A generic webhook takes a Go template, and templates for PagerDuty, Opsgenie, Discord and Telegram ship with vink. Like checkers, notifiers sit behind a three-method interface:

type Notifier interface {
	Kind() domain.ChannelKind
	Validate(cfg json.RawMessage) error
	Send(ctx context.Context, cfg json.RawMessage, n Notification) error
}

Closed networks: agents and egress

#

The deployment we design for is a corporate network in segments. The vink server lives where people can reach it, and the services worth checking often live where it cannot. vink’s answer is that every arrow points at the server and nothing needs an inbound port.

Probe agents

#

An agent is the same binary, started as vink agent --server wss://… --token vat_…. It dials out over WebSocket, announces its labels, runs the checks it is given and reports the results. It never listens on a port and keeps nothing on disk.

• Same code everywhere. The agent runs the server’s own internal/checks package, so a check behaves identically locally and remotely.
• Assignment by labels. A monitor names an agent or a label selector such as site=dc1. The least loaded matching agent wins, ties go by name, and the assignment sticks while that agent stays connected.
• Edits versus state changes. An assign carries a version, an FNV-64a hash of the spec, so a state change on the monitor is not mistaken for an edit.
• Trust without a CA. The agent can pin the server certificate by its SHA-256 fingerprint. With a pin set, the pin is the verification and the CA chain is not consulted, which suits internal CAs the agent host does not trust.
• Resilience. The agent reconnects with exponential backoff from 1 to 60 seconds. Through an agent, the minimum check interval is 30 seconds instead of 10.

Egress control you can prove

#

“Does not phone home” is easy to claim and hard to prove. vink makes it structural.

• One place opens connections. The package internal/outbound holds the dialer, an HTTP transport with the configured proxy and CA bundle, and the resolver. Checkers, notifiers, the OIDC client and the agent all use it.
• Private targets can be refused safely. With allow_private_targets = false, the dialer resolves the host once and refuses loopback, RFC 1918, link-local and unspecified addresses. It then dials the address it vetted, so a DNS answer that changes between the check and the connect cannot slip through.
• Every connection is observed. The dialer reports each connection to an Observe hook, and [outbound] egress_log writes them to a file. TestNoEgress runs a server with the log on and asserts that an idle install opens nothing. When we ran a test install with one HTTP check and one ntfy channel, the log listed exactly those two hosts.
• A gate keeps it that way. scripts/check-egress.sh, part of make lint, greps the Go code for anything that opens a connection: dials, HTTP clients, http.DefaultClient, resolvers, SMTP and WebSocket dials. A match outside a short allowlist fails, and every allowlist entry carries its reason. The gate also fails when an entry stops matching, so the list cannot rot.
• The UI loads nothing from outside. htmx 4.0.0, the fonts and the icons are embedded in the binary.

Multi-tenancy you can test

#

Orgs hold projects, and a membership gives one of four roles in every project of the org. Instance admins sit above them.

Isolation is enforced at three levels, and two of them are tooling, not convention:

1. Every query is scoped. Every query on a project-scoped table filters by project_id, and every query on an org table by org_id.
2. A gate reads the SQL. scripts/check-tenancy.sh runs in CI and walks every sqlc query. A query that touches a project table without project_id, or an org table without org_id, fails the build. The only exceptions are queries annotated -- tenancy: root, such as the scheduler’s, the dispatcher’s and the auth lookups that establish a scope, and -- tenancy: org. Of 223 queries, 62 are root and 28 are org, each with its reason in the annotation.
3. A test walks the router. The cross-tenant test builds two tenants, mounts the real API router and walks its own route list. It calls every route with tenant A’s ids as tenant B, using a read-write key, a read-only key, org keys and a browser session, and expects 404 every time. A new route is covered the moment it is registered. The answer is 404 rather than 403, so a response never reveals that a resource exists in another tenant.

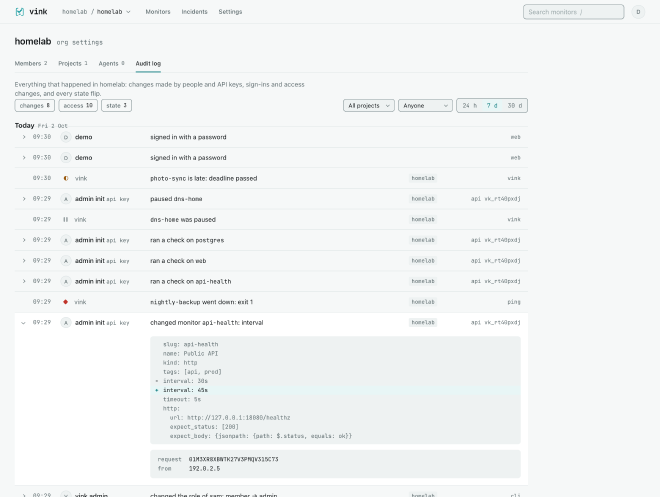

The audit log completes the picture. The service layer writes each audit row through the transaction of the change it describes, so a rolled-back change leaves no row and a committed one always has one. A change row holds the YAML before and after, with secrets shown as ***, plus the request id and address. Rows are never edited or pruned, and state flips appear in the same log as vink’s own rows.

Identity without an identity stack

#

vink contains no Kerberos, SAML or LDAP code. It offers three ways in, and all three end in the same subject and groups.

• Trusted proxy headers, for Authelia, oauth2-proxy or Apache with Kerberos. Identity headers count only from trusted_cidrs and only with a shared secret header that the proxy adds, so a client cannot inject Remote-User through a forgotten proxy rule. The API, ping, status and metrics paths never read them.
• OpenID Connect, using the authorization-code flow with PKCE. The state and nonce are checked, and a replayed state is refused.
• Local accounts, with argon2id passwords (t=2, 64 MB, p=1), sessions you can list and revoke, TOTP from a standard-library implementation with a QR code the server draws, and ten recovery codes.

Groups named vink:<org>:<role> grant roles. Where group names cannot be shaped, such as Active Directory behind Apache, roles = "vink" keeps role management in vink instead.

Machine access follows the same scoping:

• Project API keys are read-only or read-write. They are stored as argon2id hashes with an 8-character lookup prefix and shown once.
• Org keys may call only the org-wide export and apply.
• Instance admin keys (vka_…) always expire, after 30, 90 or 365 days. They can be limited to address ranges, and they are revoked when their creator stops being an instance admin.

At rest, channel configurations and TOTP secrets are sealed with XChaCha20-Poly1305 under secret.key. The same key signs acknowledgement links and status-page password cookies.

A web UI without a build step

#

• No frontend toolchain. The UI is html/template with vendored htmx 4.0.0: no JavaScript framework, no node_modules, nothing from a CDN.
• Progressive enhancement. Everything works without JavaScript, just with full page loads. The list and drawer poll only while the tab is visible, and an unchanged partial answers 304 through an ETag.
• Tight content security policies. UI pages allow scripts from vink’s own origin only, with no inline scripts. Status pages use default-src 'none' and run no script at all: they refresh with a meta tag every 60 seconds and are cacheable for 30.
• Responsive by CSS alone. Under 960 px the drawer becomes the page, and under 640 px rows go two-line and forms stack their fields.

Configuration as code

#

Monitors, channels, routes, maintenance windows and status pages can all live in a YAML file, validated against a published JSON Schema:

version: 1
channels:
  - {name: phone, kind: ntfy, url: https://ntfy.example.com, topic: vink}
  - {name: oncall, kind: webhook, url: https://hooks.example.com/oncall}
routes:
  - {match_tags: [prod], channels: [oncall], on: [down, up], repeat_every: 4h}
maintenance:
  - {name: weekly patching, match_tags: [prod], rrule: "FREQ=WEEKLY;BYDAY=SU", from: "02:00", to: "04:00"}
monitors:
  - {slug: nightly-backup, kind: heartbeat, schedule: {cron: "0 3 * * *"}, timezone: Europe/Amsterdam, grace: 30m, max_runtime: 2h, tags: [backup]}
  - {slug: api-health, kind: http, interval: 30s, tags: [api, prod], http: {url: "https://api.example.com/healthz", expect_body: {jsonpath: {path: "$.status", equals: ok}}}}

A project’s first channel gets a route that sends every down and up. In this file, phone hears about everything and the explicit route adds the on-call hook for production.

• Transactional and idempotent. vink apply computes a diff by slug and name and applies it in one transaction. A second run of the file above reports six resources unchanged.
• Safe to preview. --dry-run prints the diff, and --prune deletes what the file leaves out.
• State is never configuration. Apply never touches a monitor’s state, and a monitor whose kind changes is recreated, which the diff says.
• Secrets stay on the client. ${VAR} is expanded by the CLI from its own environment, never by the server.
• Round trips and migrations. vink export writes the file back, for a project or a whole org, and importers convert exports from Healthchecks and Uptime Kuma.

Operations

#

Testing

#

• Unit and integration tests. They are table-driven, use a temporary SQLite file per test with no database mocks, and run with -race. The state machines, the schedule’s daylight-saving table and the checkers are tested in isolation, and the HTTP tests run the full handler stack on a temporary database.
• End-to-end smoke tests. make e2e runs four of them against the built binary: a heartbeat with a webhook delivery, a homelab setup, a probe agent, and onboarding a second org without hand-holding.
• CI gates. CI runs gofmt, go vet, golangci-lint, a check that the sqlc output is regenerated and clean, the tenancy gate and govulncheck. The Go and Python ping clients are tested across language versions and checked to have no dependencies.

Why this matters for an organisation

#

• One tool for both signals. Jobs and services share one alert path, one incident list, one status page and one audit trail, with no second tool to keep in sync.
• Installs where the work is. It runs air-gapped from one binary, honours a proxy and a private CA everywhere, and reaches closed segments through agents that dial out. The egress log proves it stays quiet.
• Fits the identity you have. People sign in through OIDC, the reverse proxy you already run (Kerberos included), or local accounts with two-factor, and groups map to roles.
• Isolation by construction. Teams share an instance without seeing each other’s monitors, and the build fails before a query can leak across tenants.
• Reviewable change. Configuration lives in git with diff, dry run and prune, the audit log records who changed what and when, and importers ease the move from existing tools.
• Little to operate. One process, one file to back up, Prometheus metrics, and a readiness probe that catches a wedged scheduler.
• Honest limits. vink does not do on-call rotas or escalation; route its alerts to PagerDuty, Opsgenie or Alertmanager for that. It has no browser checks and no multi-region probing. A Postgres backend and a Terraform provider are planned, not shipped.

vink is a personal tool published because the approach may be useful to others, and its README says so plainly. It runs a homelab and is built for closed corporate networks, which sets its priorities, and support is best effort. What we can say is that the combination of one state machine, an outbox, scoped queries checked by tooling, and egress that is observed rather than promised is the pattern we would reach for again.

docker run -d --name vink -p 8080:8080 -v vink-data:/data ghcr.io/w4jnl/vink
printf 'a-long-password\n' | docker exec -i vink /vink admin init --org homelab --user admin --password-stdin

If your team needs monitoring that installs inside a closed network, or help with the identity, proxy and alerting around it, talk to us.
